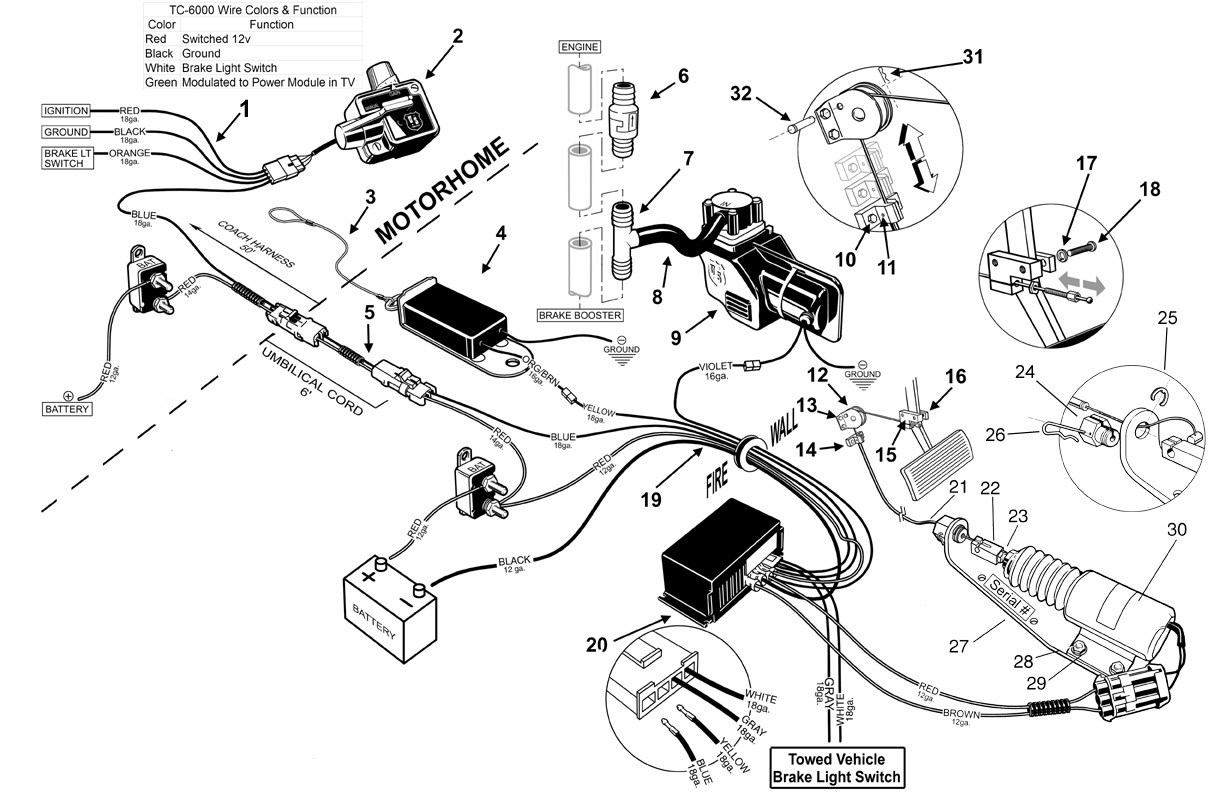

Unified Tow Brake Components (UTB-1000)
SERIAL NUMBERS 017185 AND HIGHER
| Item | Part Number | Description | Quantity |
| 1 | EC-4115A | Wiring Harness (Motorhome Side) | 1 |
| 2 | TC-6000 | Control Module | 1 |
| 3 | LP-6060 | Breakaway Lanyard 6' | 1 |
| 4 | BS-6060A | Breakaway Switch | 1 |
| 5 | EC-4115B | Wiring Harness (Connector) | 1 |
| 6 |
CV-6000 CV-6120 |
Check Valve 3/8" Check Valve 1/2" |
1 1 |
| 7 |
TF-6000 TF-6120 TF-6516 |
Tee Fitting 3/8" Tee Fitting 1/2" Tee Fitting 5/16" |
1 1 1 |
| 8 | VH-6000 | Vacuum Hose 7/32" x 24" | 1 |
| 9 | VP-1000A | Vacuum Pump Assembly | 1 |
| 10 | TS-6000 | Self-Tapping Screw 1/4" x 3/4" | 2 |
| 11 | SS-6002 | #5 Allen Set Screw, 1/4" | 1 |
| 12 | BP-6001 | Flat Block Pulley 1-1/2" O.D. | 1 |
| 13 | TS-6001 | Self Tapping Screw 3/16" x 3/4" | 4 |
| 14 | ST-6003 | Outer Cable Stop Bracket | 1 |
| 15 | BB-6005 | Brake Pedal Bracket Adjust Side | 1 |
| 16 | BB-6003 | Brake Pedal Bracket Clamp | 1 |
| 17 | LW-1001 | Lock Washer 1/4" | 2 |
| 18 | SH-6000 | Socket Head Cap Screw 1/4-20 x1 | 2 |
| 19 | EC-4115E | Wiring Harness (Car Side) | 1 |
| 20 | PM-6002 | Power Module | 1 |
|
21 Optional Optional |
CA-6001 CA-6081 CA-6121 |
Cable Assembly 4' Cable Assembly 8' (not shown) Cable Assembly 12' (not shown) |
1 0 0 |
| 22 | SE-6002 | Solenoid End | 1 |
| 23 | JN-1000 | Jam Nut 5/16-24 | 1 |
| 24 | CR-6001 | Cable Retainer | 1 |
| 25 | SR-6001 | Snap Ring | 1 |
| 26 | HC-6001 | Hairpin Clip | 1 |
| 27 | PL-6000 | Solenoid Plate | 1 |
| 28 | CB-1002 | Carriage Bolt 5/16"-18 x 5/8" | 4 |
| 29 | LN-1003 | Lock Nut 5/16"-18 | 4 |
| 30 | ES-6001 | Electric Solenoid | 1 |
| 31 | PC-1002 | Hairpin Clip | 1 |
| 32 | CP-1002 | Pulley Pin | 1 |
| Not Shown | ||
| Part Number | Description | Quantity |
| RH-5161D | Hose, 5/16" I.D. x 2" | 2 |
| BC-6000 | Butt Connector | 2 |
| BD-6000K | Blocking Diode Kit | 1 |
| DM-6000 | Dash Mount for Controller | 1 |
| DP-6000 | Spare Plunger Only | 2 |
| DS-4056 | Double Faced Tape for Dash Mount | 2 |
| EC-4115D | Electrical Connector Plugs | 2 |
| KR-6000 | Key Ring for Extra Breakaway Pin | 1 |
| LW-1001 | Lock Washer 1/4" for Breakaway Bolt | 1 |
| NT-1100 | Nylon Ties | 20 |
| SB-6000 | Breakaway Switch Bolt | 1 |
| SN-6000 | Nut for Breakaway Bolt Pin | 1 |
| TS-6001 | Screws for mounting Circuit Breakers | 4 |
| TS-6002 | Self Tapping Screw, 1/4" x 1" | 1 |
